Suitable for Alpha and Beta containers

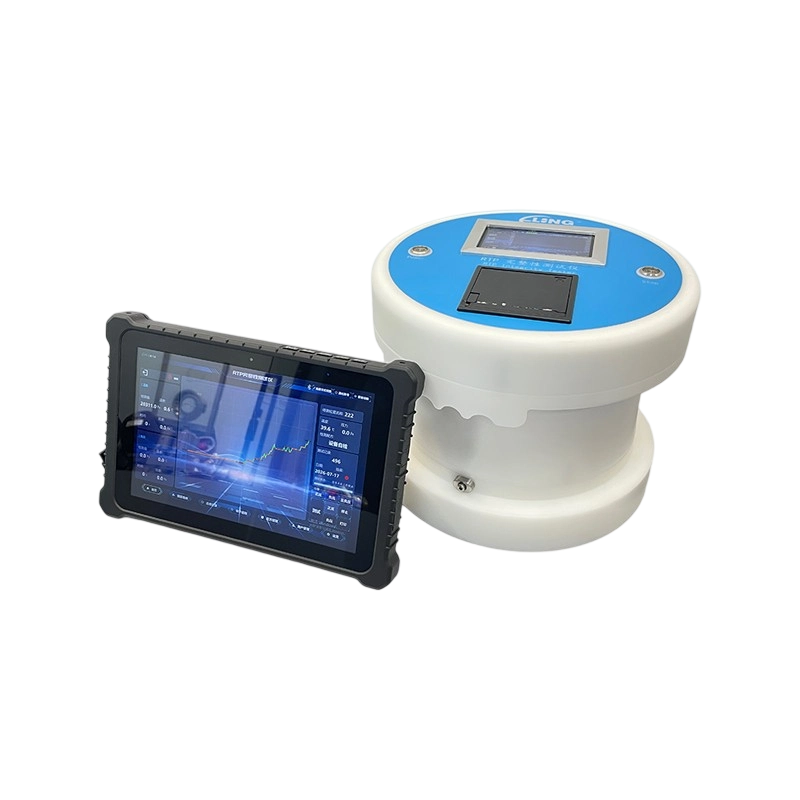

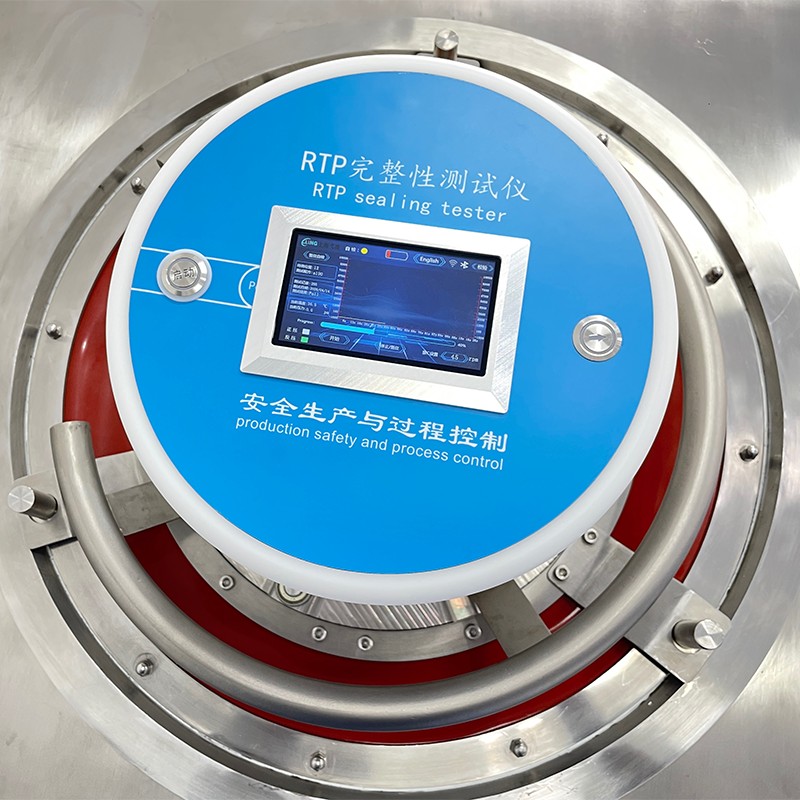

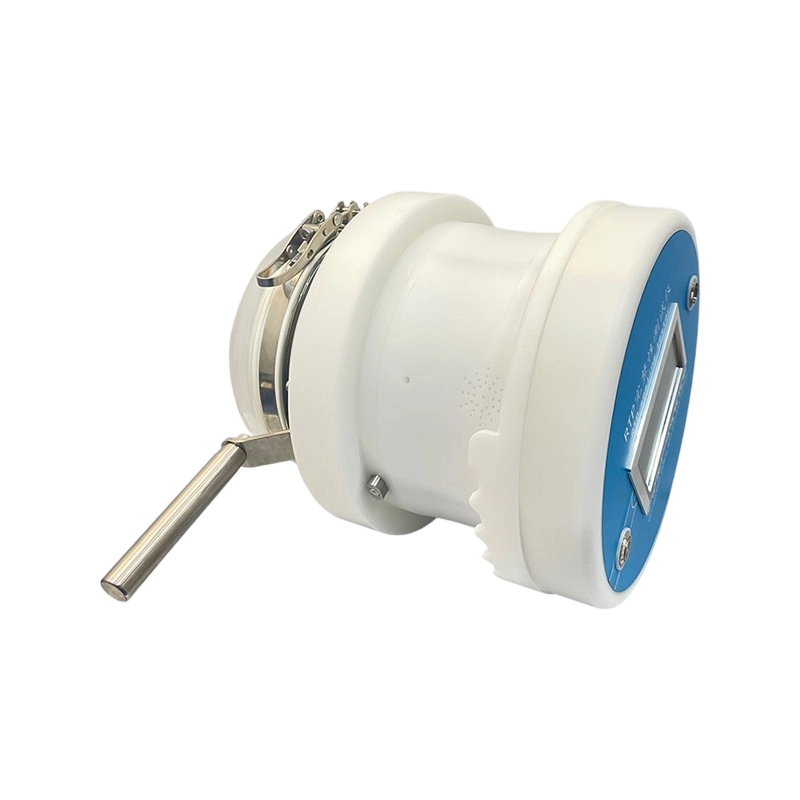

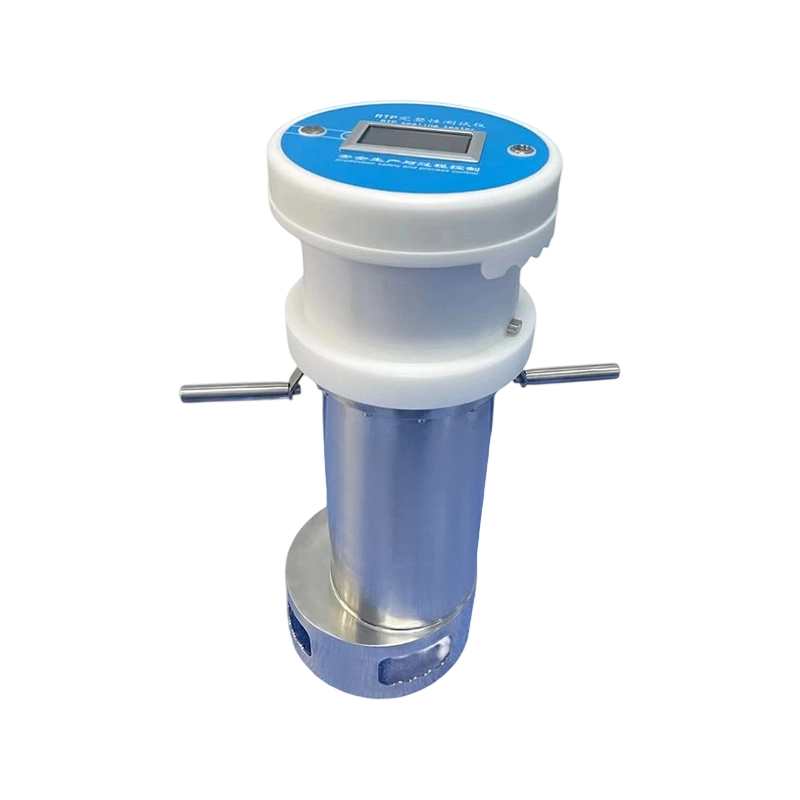

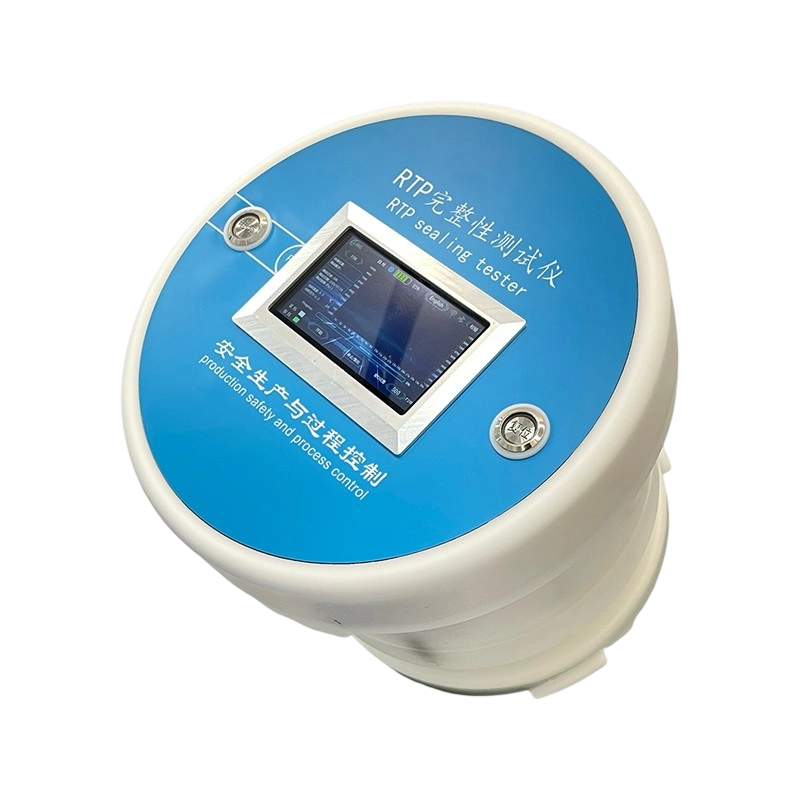

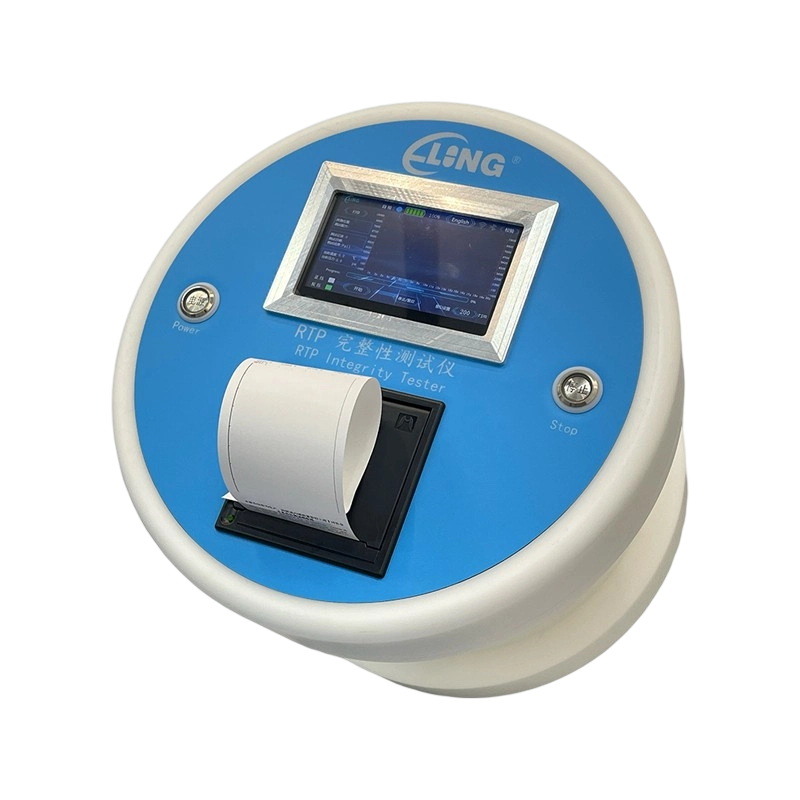

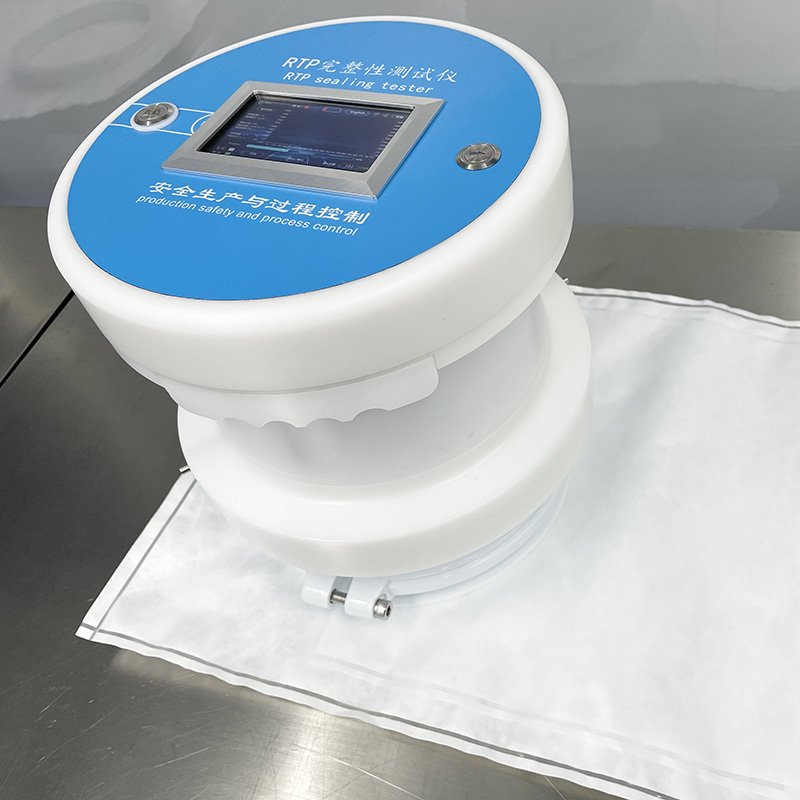

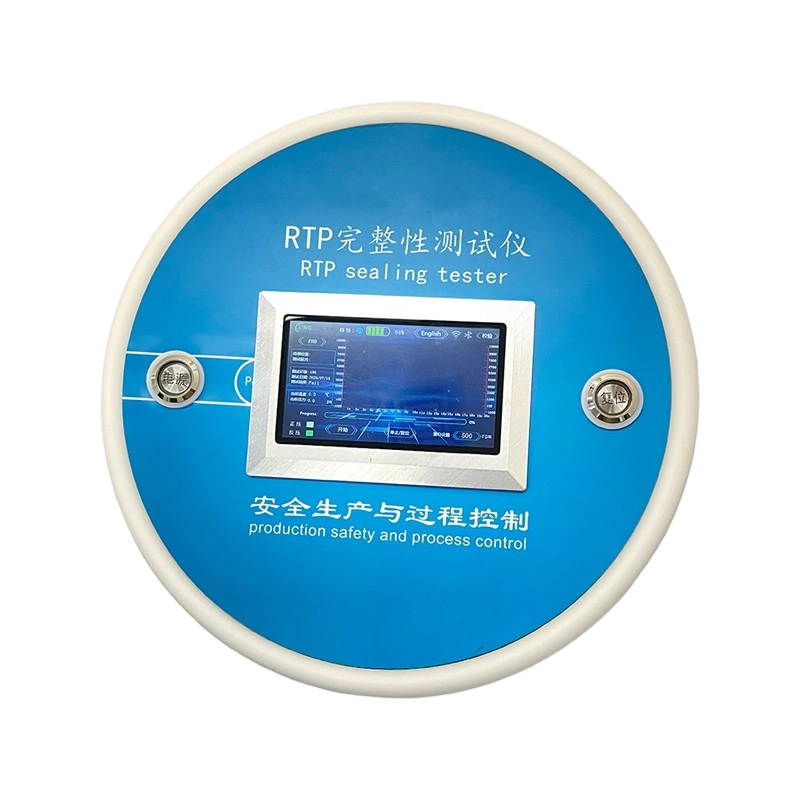

Eling-ITS is a new type of RTP tester specifically developed for fully automated integrity testing of Rapid Transfer Ports (Alpha units) installed on isolators or RABS, as well as their corresponding containers (Beta units).
Based on the pressure decay method, it ensures the accuracy of test results.
| Data Management | Compatibility | Function | Technology |
| Complies with the requirements of FDA 21 CFR Part 11, EU Annex 11, and GAMP 5. | Compatible with all types of Alpha and Beta ports. Compatible with diameters of 105, 110, 190, 270, and 350. |

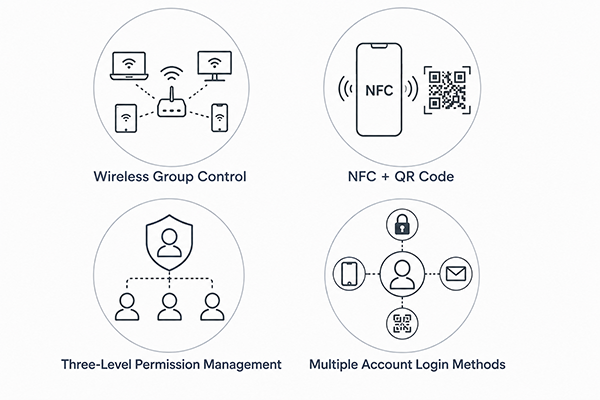

Wireless group control technology, NFC + QR Code, three-level permission management, multiple account login methods. |

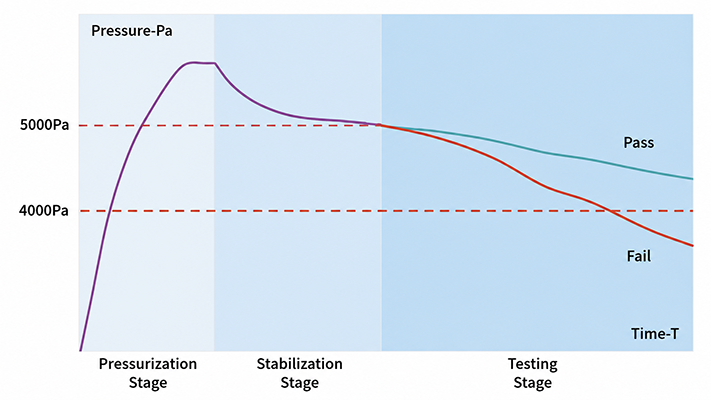

Using the pressure decay testing method, a built-in air pump applies positive or negative pressure to the RTP Alpha or Beta port. Once the internal pressure reaches the set value, a stabilization phase begins. Following the pressure-holding period, the test commences as the pressure drops to the starting level; if the pressure drop remains within the specified range during the set duration, the test requirements are met and a report is issued. |
